1、安装

docker run -d \
--restart=unless-stopped \
--name=kuboard \
-p 18080:80/tcp \
-p 10081:10081/tcp \

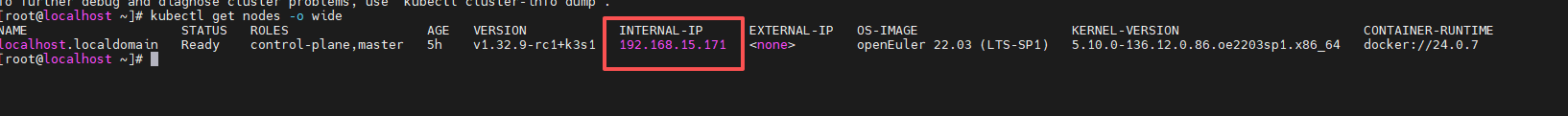

-e KUBOARD_ENDPOINT="http://192.168.15.171:18080" \
-e KUBOARD_AGENT_SERVER_TCP_PORT="10081" \
-v /root/kuboard-data:/data \
swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3

swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3 已经下载上传云盘

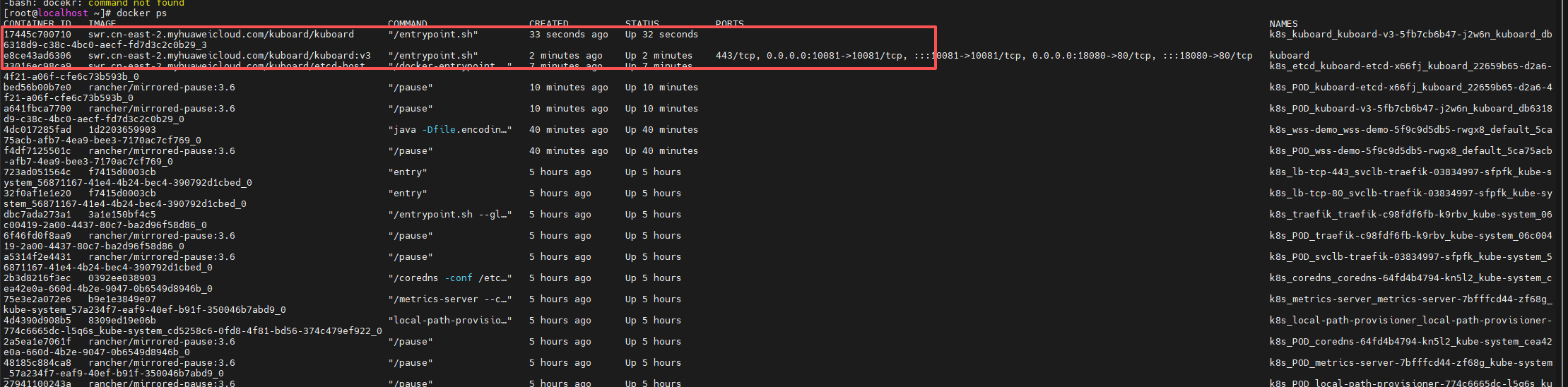

docker ps

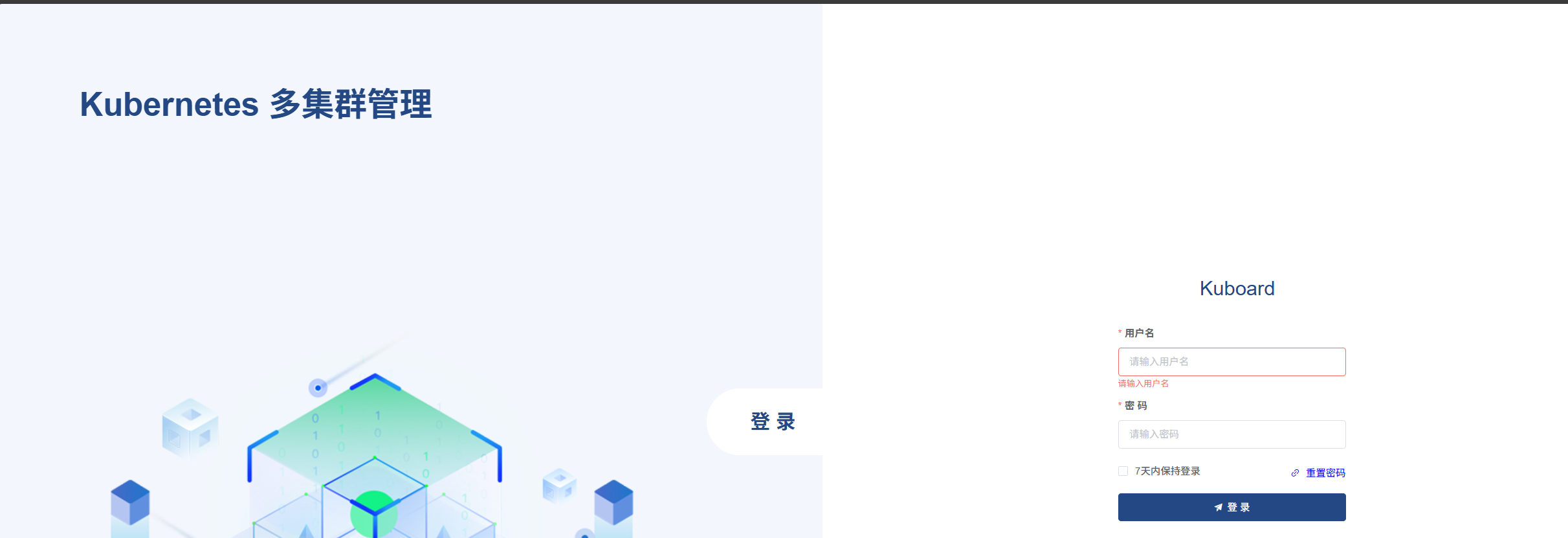

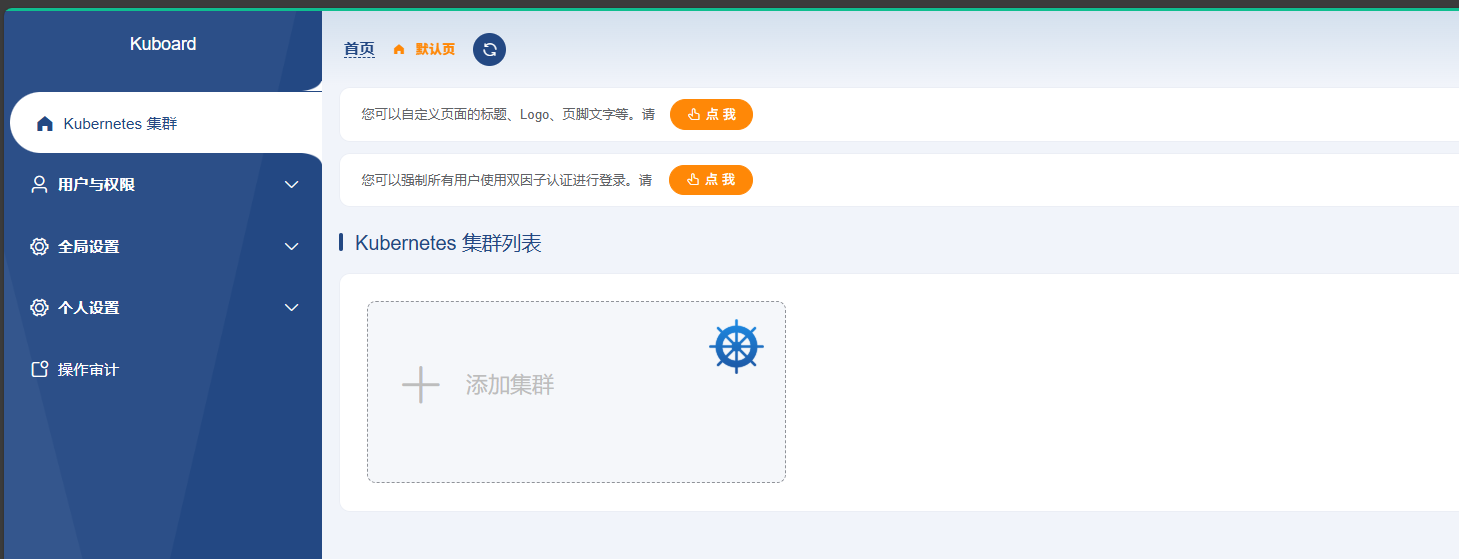

访问地址：http://192.168.15.171:18080

admin/Kuboard123

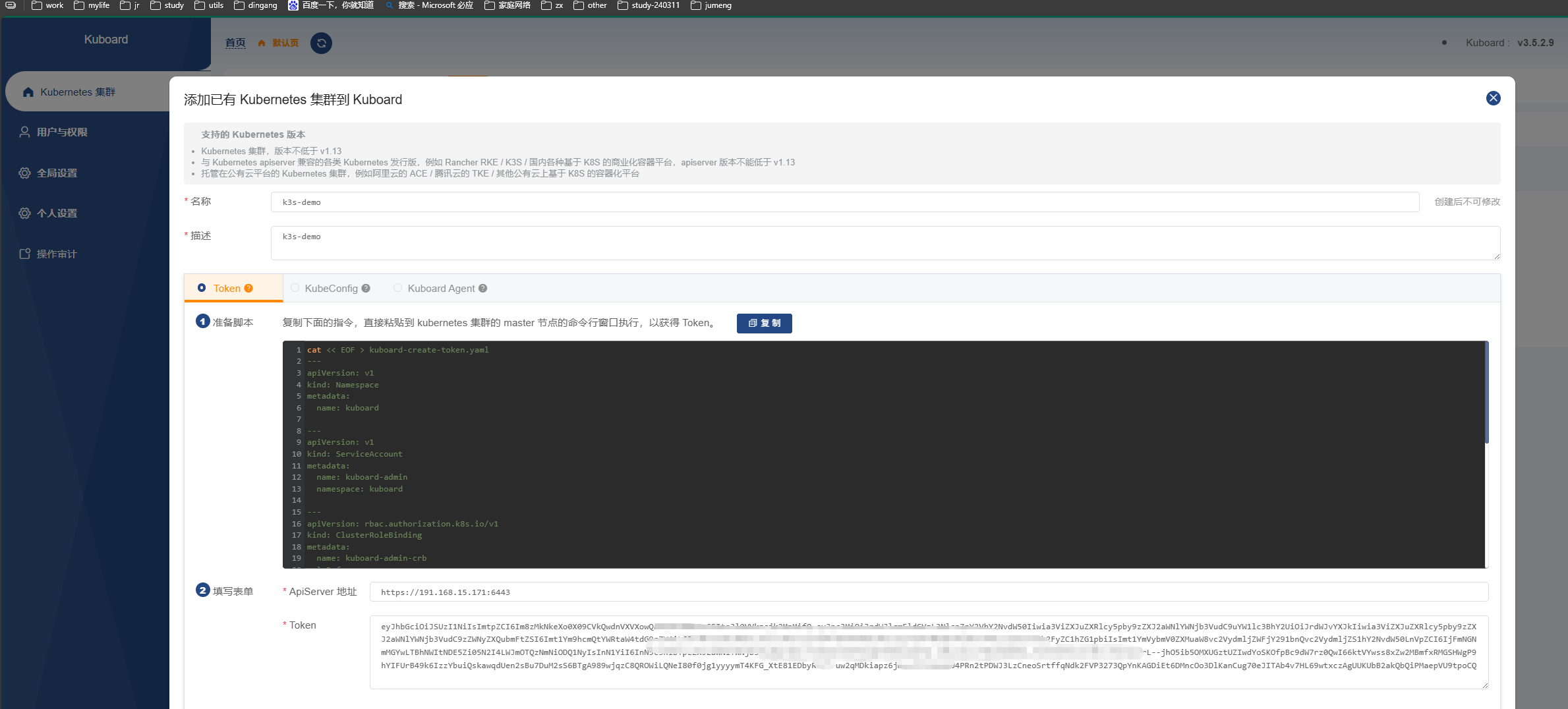

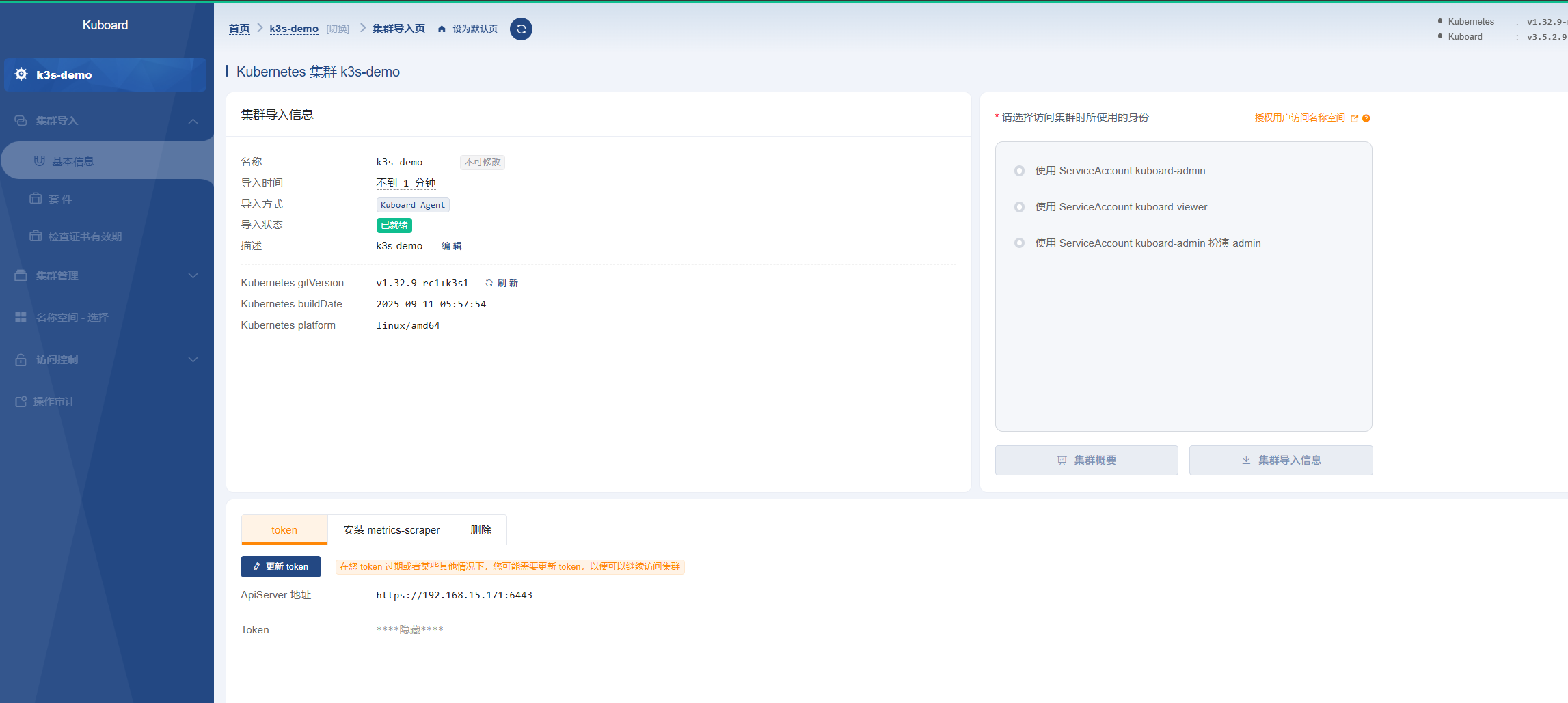

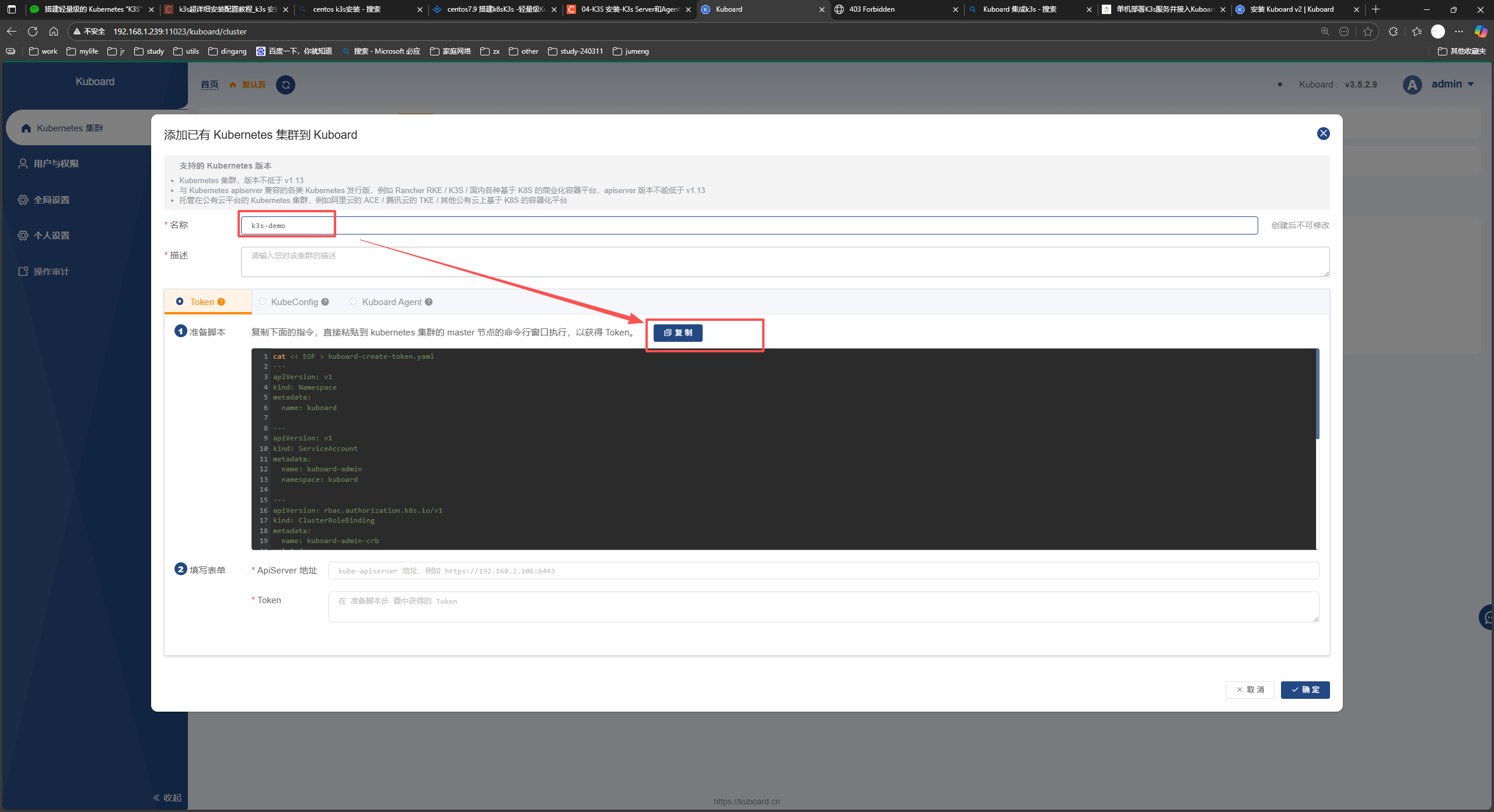

2、绑定k3s

cat << EOF > kuboard-create-token.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: kuboard

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kuboard-admin
  namespace: kuboard

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kuboard-admin-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kuboard-admin
  namespace: kuboard

---
apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  annotations:
    kubernetes.io/service-account.name: kuboard-admin
  name: kuboard-admin-token
  namespace: kuboard
EOF

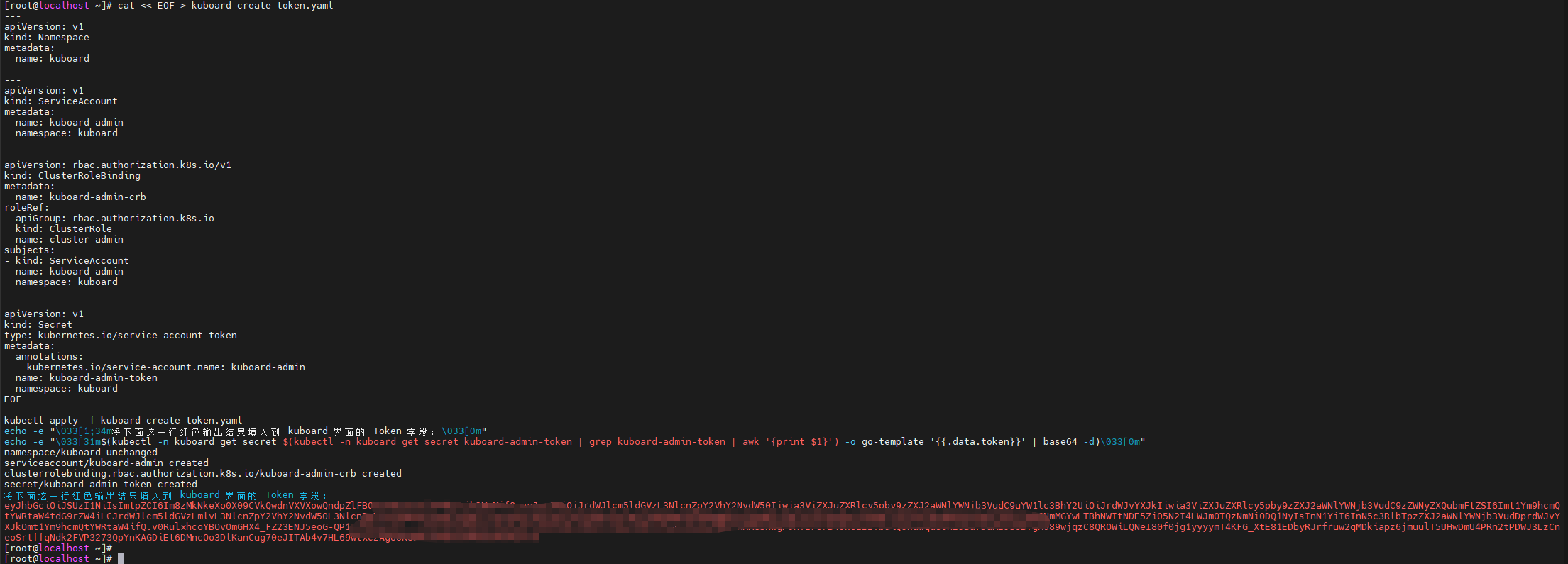

kubectl apply -f kuboard-create-token.yaml
echo -e "\033[1;34m将下面这一行红色输出结果填入到 kuboard 界面的 Token 字段：\033[0m"
echo -e "\033[31m$(kubectl -n kuboard get secret $(kubectl -n kuboard get secret kuboard-admin-token | grep kuboard-admin-token | awk '{print $1}') -o go-template='{{.data.token}}' | base64 -d)\033[0m"

在master节点执行后，输出token
