minio安装

#运维#中间件#minio

minio

注意：

1. minio要求数据存储位置，是一个单独的磁盘，不能和其他数据共享，所以需要单独挂载一个磁盘

2. 推荐使用SSD磁盘

1、单机部署

1、创建文件夹：/data/minio_sso/{data,conf,logs}

2、/data/minio_sso/data 是单独挂载的磁盘

3、进入到目录 /data/minio_sso

1、下载minio

wget http://dl.minio.org.cn/server/minio/release/linux-amd64/minio

修改权限：

chmod +x minio

2、编写启动脚本

#!/bin/sh
# 账号
export MINIO_ROOT_USER=admin
# 密码
export MINIO_ROOT_PASSWORD=jm123456.
# 浏览器, off on
export MINIO_BROWSER=on
# 1、--address 是API端口
# 2、--console-address 是控制台端口
nohup ./minio server --config-dir /data/minio_sso/conf --address ":9555" /data/minio_sso/data --console-address ":9556" > /opt/minio/logs/minio.log 2>&1 &

停止脚本

#!/bin/bash
#MinIO停止脚本
ps -ef | grep  minio | grep -v 'grep' | awk '{print $2}'| xargs kill -9

if $? != 0;then
          echo "minio service stop failed."
          exit 1
fi
EOF

4、将minio做成服务

cat < /etc/systemd/system/minio.service


[Unit]
Description=Minio service
Documentation=https://docs.minio.io/

[Service]
WorkingDirectory=/data/minio_sso/
ExecStart=/data/minio_sso/start.sh
ExecStop=/data/minio_sso/stop.sh

Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

修改服务权限

chmod +x /etc/systemd/system/minio.service && chmod +x /data/minio_sso/minio && chmod +x /data/minio_sso/run.sh && chmod +x /data/minio_sso/stop.sh

详见：服务器/centos

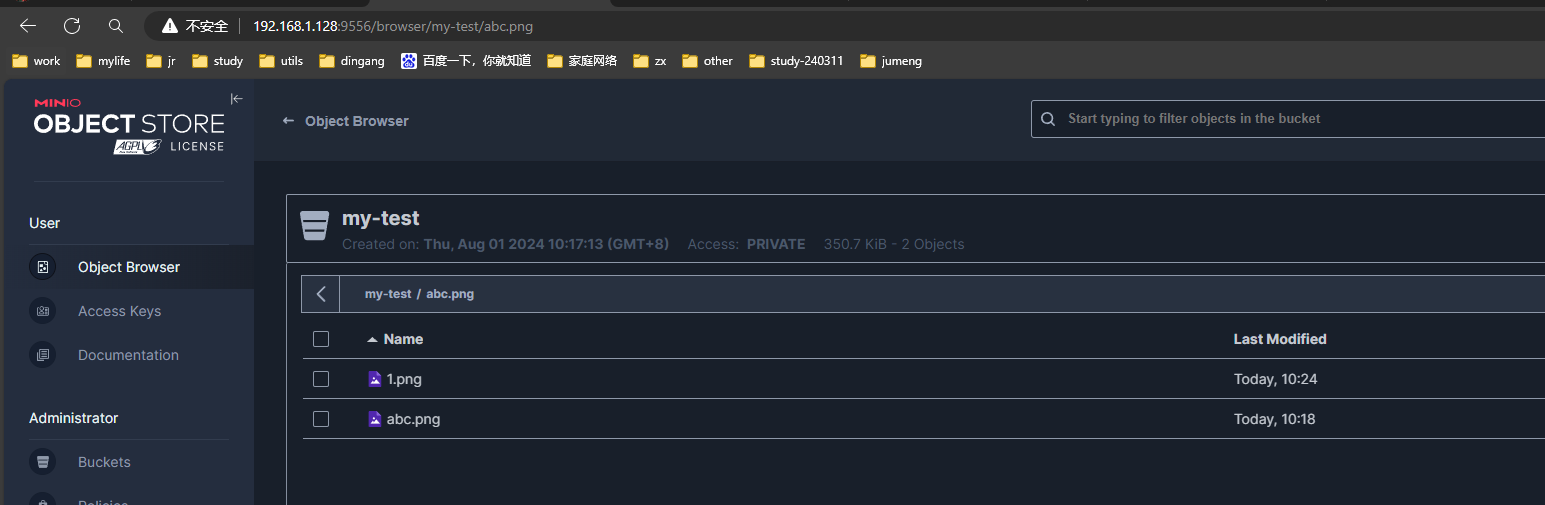

3、访问

2、单机多磁盘部署

1、在单机部署的基础上，挂载多个硬盘

如：

/data/minio_sso/data/storage1 ----硬盘1

/data/minio_sso/data/storage2 ----硬盘2

/data/minio_sso/data/storage3 ----硬盘3

/data/minio_sso/data/storage4 ----硬盘4

2、修改启动脚本

#!/bin/bash
# chkconfig: 2345 85 15
# description: minio server
# 账号
export MINIO_ROOT_USER=admin
# 密码
export MINIO_ROOT_PASSWORD=jm123456.
# 浏览器, off on
export MINIO_BROWSER=on

# 服务IP
IP=
# 服务端口
PORT=9555

# 控制台端口
CONSOLE_PORT=9556

MINIO_BASE=/data/minio_sso
MINIO_DATA=$MINIO_BASE/data/storage{1...4}
MINIO_RUN_LOG=$MINIO_BASE/logs
MINIO_CONFIG=$MINIO_BASE/conf
PID=minio.pid

case "$1" in

    start)
        nohup $MINIO_BASE/minio server \
        --config-dir $MINIO_CONFIG \
        --address $IP:$PORT \
        --console-address $IP:$CONSOLE_PORT \
        > $MINIO_RUN_LOG/running.log 2>&1 &
        echo $! > $MINIO_BASE/$PID
        echo "=== 启动 MinIO 成功"
        ;;

    stop)
        kill `cat $MINIO_BASE/$PID`
        rm -rf $MINIO_BASE/$PID

        sleep 2

        P_ID=`ps -ef | grep -w "$MINIO_BASE/minio server" | grep -v "grep" | awk '{print $2}'`
        if [ "$P_ID" == "" ]; then
            echo "=== $MINIO_BASE/minio process not exists or stop success"
        else
            echo "=== $MINIO_BASE/minio process pid is:$P_ID"
            echo "=== begin kill $MINIO_BASE/minio server process, pid is:$P_ID"
            kill -9 $P_ID
        fi

        echo "=== 停止 MinIO 成功"
        ;;

    status)
        echo "=== 查看 MinIO 状态"
        echo `ps -ef | grep -w "$MINIO_BASE/minio server"`
        ;;

    logs)
        tail -200f $MINIO_RUN_LOG/running.log
        ;;

    restart)
        $0 stop
        sleep 3
        $0 start
        echo "=== 重启 MinIO 成功"
        ;;
esac
exit 0

3、启动

sh pow.sh start

sh pow.sh stop

sh pow.sh status

sh pow.sh logs

sh pow.sh restart

3、多机多磁盘部署

两台机器：

http://192.168.1..128
http://192.168.1..162

1、在单机多磁盘部署的基础上

编辑启动脚本

添加集群地址：

        http://192.168.1.128$MINIO_DATA \
        http://192.168.1.162$MINIO_DATA \

#!/bin/bash
# chkconfig: 2345 85 15
# description: minio server
# 账号
export MINIO_ROOT_USER=admin
# 密码
export MINIO_ROOT_PASSWORD=jm123456.
# 浏览器, off on
export MINIO_BROWSER=on

# 服务IP
IP=
# 服务端口
PORT=9555

# 控制台端口
CONSOLE_PORT=9556

MINIO_BASE=/data/minio_sso
MINIO_DATA=$MINIO_BASE/data/storage{1...4}
MINIO_RUN_LOG=$MINIO_BASE/logs
MINIO_CONFIG=$MINIO_BASE/conf
PID=minio.pid

case "$1" in

    start)
        nohup $MINIO_BASE/minio server \
        --config-dir $MINIO_CONFIG \
        --address $IP:$PORT \
        --console-address $IP:$CONSOLE_PORT \
        http://192.168.1.128$MINIO_DATA \
        http://192.168.1.162$MINIO_DATA \
        > $MINIO_RUN_LOG/running.log 2>&1 &
        echo $! > $MINIO_BASE/$PID
        echo "=== 启动 MinIO 成功"
        ;;

    stop)
        kill `cat $MINIO_BASE/$PID`
        rm -rf $MINIO_BASE/$PID

        sleep 2

        P_ID=`ps -ef | grep -w "$MINIO_BASE/minio server" | grep -v "grep" | awk '{print $2}'`
        if [ "$P_ID" == "" ]; then
            echo "=== $MINIO_BASE/minio process not exists or stop success"
        else
            echo "=== $MINIO_BASE/minio process pid is:$P_ID"
            echo "=== begin kill $MINIO_BASE/minio server process, pid is:$P_ID"
            kill -9 $P_ID
        fi

        echo "=== 停止 MinIO 成功"
        ;;

    status)
        echo "=== 查看 MinIO 状态"
        echo `ps -ef | grep -w "$MINIO_BASE/minio server"`
        ;;

    logs)
        tail -200f $MINIO_RUN_LOG/running.log
        ;;

    restart)
        $0 stop
        sleep 3
        $0 start
        echo "=== 重启 MinIO 成功"
        ;;
esac
exit 0

2、在集群其他主机上做上面相同的操作，在启动集群中所有服务

sh pow.sh start

sh pow.sh stop

sh pow.sh status

sh pow.sh logs

sh pow.sh restart

3、nginx配置

自己测试的配置




    # 监听后端接口服务 -可用于分布式部署
    upstream minio_server{
    #     server 192.168.1.233:8848 max_fails=3 fail_timeout=5s;
    #     server 192.168.1.233:18847 max_fails=3 fail_timeout=5s;
    #     server 192.168.1.233:28846 max_fails=3 fail_timeout=5s;

        server 192.168.1.128:9555 weight=1;
        server 192.168.1.162:9555 weight=1;
    }

    upstream minio_console_server{
    #     server 192.168.1.233:8848 max_fails=3 fail_timeout=5s;
    #     server 192.168.1.233:18847 max_fails=3 fail_timeout=5s;
    #     server 192.168.1.233:28846 max_fails=3 fail_timeout=5s;

        server 192.168.1.128:9556 weight=1;
        server 192.168.1.162:9556 weight=1;
    }

  server {
    listen 9555;
    server_name 192.168.1.233;

    location / {
      proxy_pass http://minio_server/;
      #proxy_set_header Host $host;
      proxy_set_header Host $http_host;
      proxy_set_header X-Real-IP $remote_addr;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_next_upstream     http_500 http_502 http_503 http_504 error timeout invalid_header;

    }
  }


  server {
    listen 9556;
    server_name 192.168.1.233;

    location / {
      proxy_pass http://minio_console_server/;
      #proxy_set_header Host $host;
      proxy_set_header Host $http_host;
      proxy_set_header X-Real-IP $remote_addr;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_next_upstream     http_500 http_502 http_503 http_504 error timeout invalid_header;

    }
  }

网上的配置

upstream minio_console {
    server 172.16.11.1:9000 max_fails=3 fail_timeout=5s;
    server 172.16.11.2:9000 max_fails=3 fail_timeout=5s;

}
upstream minio_api {
    server 172.16.11.1:9029 max_fails=3 fail_timeout=5s;
    server 172.16.11.2:9029 max_fails=3 fail_timeout=5s;

}

server {
    listen          80;
    listen         443 ssl;
    server_name     cons.minio.com;

    ssl_certificate keys/cons/server.crt;
    ssl_certificate_key keys/cons/server.key;
    ssl_session_cache shared:SSL:1m;
    ssl_session_timeout  10m;
    ssl_ciphers HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;
    client_max_body_size     1G;   #如果上传文件大于1G，就需要更改这个参数
    client_header_timeout    1m;
    client_body_timeout      1m;
    proxy_connect_timeout    60s;
    proxy_read_timeout       1m;
    proxy_send_timeout       1m;

    location / {
        proxy_next_upstream     http_500 http_502 http_503 http_504 error timeout invalid_header;
        proxy_set_header        Host  $host;
        proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass              http://minio_console;
        expires                 0;
    }
}

server {
    listen          80;
    listen         443 ssl;
    server_name     api.minio.com;

    ssl_certificate keys/cons/server.crt;
    ssl_certificate_key keys/cons/server.key;
    ssl_session_cache shared:SSL:1m;
    ssl_session_timeout  10m;
    ssl_ciphers HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;
    client_max_body_size     1G;
    client_header_timeout    1m;
    client_body_timeout      1m;
    proxy_connect_timeout    60s;
    proxy_read_timeout       1m;
    proxy_send_timeout       1m;

    location / {
        proxy_next_upstream     http_500 http_502 http_503 http_504 error timeout invalid_header;
        proxy_set_header        Host  $host;
        proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass              http://minio_api;
        expires                 0;
    }
}

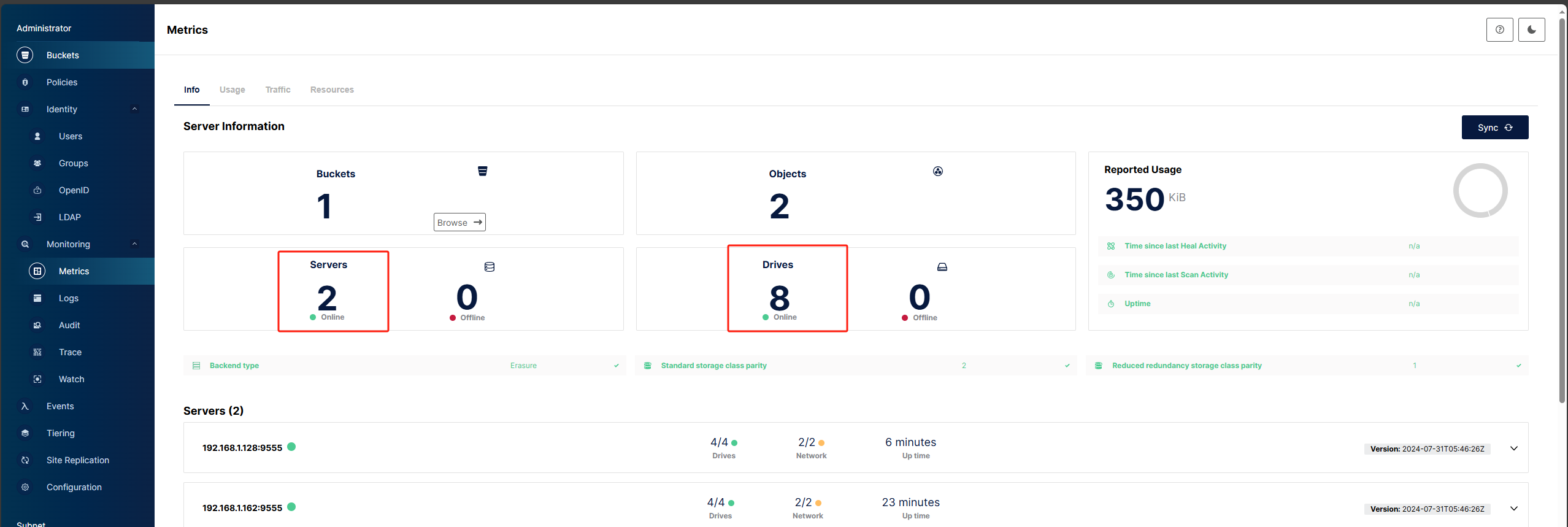

4、访问

4、minio集群，多机热备份MC

https://blog.csdn.net/toyearn/article/details/131290070?spm=1001.2101.3001.6650.1&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7ECTRLIST%7ECtr-1-131290070-blog-135535155.235%5Ev43%5Epc_blog_bottom_relevance_base6&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7ECTRLIST%7ECtr-1-131290070-blog-135535155.235%5Ev43%5Epc_blog_bottom_relevance_base6&utm_relevant_index=2

要在linux环境下，实现minio数据两台节点数据同步，达到非集群高可用，查阅一些资料，做了以下测试，记录粗略过程，与大家共同学习。

1.安装包下载

minio、mc安装包下载地址

中国镜像站


中国镜像站
https://dl.minio.org.cn/client/mc/release/linux-amd64
https://dl.minio.org.cn/client/mc/release/linux-amd64/mc

2.安装启动minio-server

准备两台服务器，比如111,112两个地址，分别安装minio-server，安装启动步骤可参考上面

3.安装启动minio-client

3.1 128依次上执行

mv mc /data/minio_sso/client
chmod +x mc
# 配置mc的主从节点地址和账号密码
mc config host add minio_master http://192.168.1.128:9555 admin jm123456.
mc config host add minio_slave http://192.168.1.162:9555 admin jm123456.

#数据流向128->162
mc mirror --remove --overwrite --watch  minio_master  minio_slave

3.2 162上依次执行

mv mc /usr/local/bin
chmod +x mc
mc config host add minio_master http://192.168.1.162:9555 admin jm123456.
mc config host add minio_slave http://192.168.1.128:9555 admin jm123456.

#数据流向162->128
mc mirror --remove --overwrite --watch  minio_master  minio_slave

4.总结

测试结果：

当两台节点正常运行工作时，两台节点数据一致

当其中某一台宕机后，另一台可继续工作使用

当宕机服务起来后，可同步另一台新增的数据

5、可以做成服务

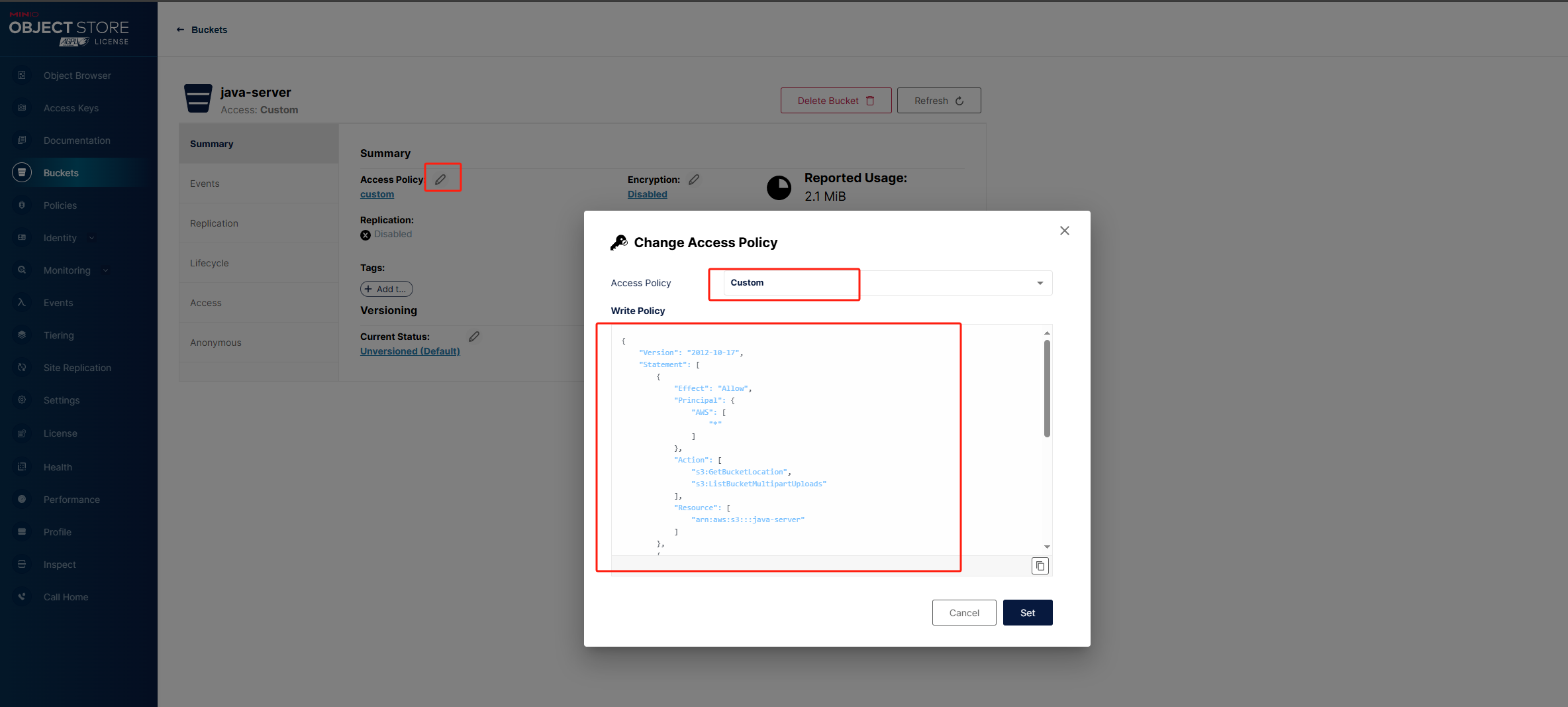

5、配置桶的策略

1、自用策略

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "*"
                ]
            },
            "Action": [
                "s3:GetBucketLocation",
                "s3:ListBucketMultipartUploads"
            ],
            "Resource": [
                "arn:aws:s3:::java-server"
            ]
        },
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "*"
                ]
            },
            "Action": [
                "s3:PutObject",
                "s3:AbortMultipartUpload",
                "s3:DeleteObject",
                "s3:GetObject",
                "s3:ListMultipartUploadParts"
            ],
            "Resource": [
                "arn:aws:s3:::java-server/*"
            ]
        }
    ]
}

2、配置解释

通过json来控制S3桶的访问权限，以下示例策略用于访问存储桶。该策略允许用户仅对 MY-BUCKET 执行 s3:ListBucket、s3:PutObject 和 s3:GetObject 操作：

{
   "Version":"2012-10-17",
   "Statement":[
      {
         "Effect":"Allow",
         "Action":[
            "s3:ListBucket"
         ],
         "Resource":"arn:aws:s3:::MY-BUCKET"
      },
      {
         "Effect":"Allow",
         "Action":[
            "s3:PutObject",
            "s3:GetObject"
         ],
         "Resource":"arn:aws:s3:::MY-BUCKET/*"
      }
   ]
}

  • Version 策略版本号（一般为时间戳）

  • Statement 策略的声明（列表的形式，里面定义了访问策略对象）

  • Effect 策略的效果（权限的拒绝或者允许，Deny,Allow）

  • Action 操作（定义操作，可以为字符串数组，也可以是字符串，如果为"s3:*" ，那么为全部操作）

  • Resource 策略附加到的资源（可以为字符串数组，也可以是字符串，AWS中每个资源都有对应的arn）

其他例子

{
    "Version":"2012-10-17",
    "Statement": [
        {
            "Sid":"GrantAnonymousReadPermissions",
            "Effect":"Allow",
            "Principal": "*",
            "Action":["s3:GetObject"],
            "Resource":["arn:aws:s3:::awsexamplebucket1/*"]
        }
    ]
}

  • Sid 策略的ID标识（一般为描述信息）

  • Principal 用于指定被允许或拒绝访问资源的用户、账户、服务或其他实体(“Principal”:"*"匿名访问，及授予每个人权限)

S3的条件键Condition

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "statement1",
      "Effect": "Allow",
      "Action": "s3:PutObject",
      "Resource": [
        "arn:aws:s3:::awsexamplebucket1/*"
      ],
      "Condition": {
        "StringEquals": {
          "s3:x-amz-acl": "public-read"
        }
      }
    }
  ]
}

  • Condition 指定策略生效时的条件

可以指定以下这些条件，如：

指定IP访问范围

"Condition" : {
    "IpAddress" : {
    	"aws:SourceIp": "192.0.2.0/24"
    },
    "NotIpAddress" : {
    	"aws:SourceIp": "192.0.2.188/32"
    }
}

要求用户上传对象时需具有特定访问权限

"Condition": {
        "StringEquals": {
          "s3:x-amz-grant-full-control": "id=AccountA-CanonicalUserID"
        }
}

更多条件字段请查阅官方文档：https://docs.aws.amazon.com/zh_cn/AmazonS3/latest/dev/list_amazons3.html.

将亚马逊 AWS S3 存储桶的访问权限到一个特定 IAM 角色

其中111111111111为账户号，ROLENAME为角色名。

//使用Principal指定111111111111账户中的ROLENAME
//拥有对MyExampleBucket桶的ListBucket权限
{
    "Effect": "Allow",
    "Principal": {
    	"AWS": "arn:aws:iam::111111111111:role/ROLENAME"
    },
    "Action": "s3:ListBucket",
    "Resource": "arn:aws:s3:::MyExampleBucket"
}



//通过Condition指定角色
{
	"Effect": "Deny",
	"Principal": "*",
	"Action": "s3:*",
	"Resource": [
	"arn:aws:s3:::MyExampleBucket",
	"arn:aws:s3:::MyExampleBucket/*"
	],
	"Condition": {
		"StringNotLike": {
			"aws:userId": [
			"AROAEXAMPLEID:*",
			"111111111111"
			]
		}
	}
}


//通过Principal给role/ROLENAME和user/USERNAME权限
{
    "Effect": "Allow",
    "Principal": [
        {
            "AWS": [
                "arn:aws:iam::222222222222:role/ROLENAME",
                "arn:aws:iam::222222222222:user/USERNAME"
            ]
        }
    ],
    "Action": "s3:ListBucket",
    "Resource": "arn:aws:s3:::MyExampleBucket"
}


centos常用命令
限流
